Binding Parameters

In the previous article we reviewed Input Validation. While Input Validationis an effective deterrent to a large number of attacks, including Injection, not all input can be filtered.

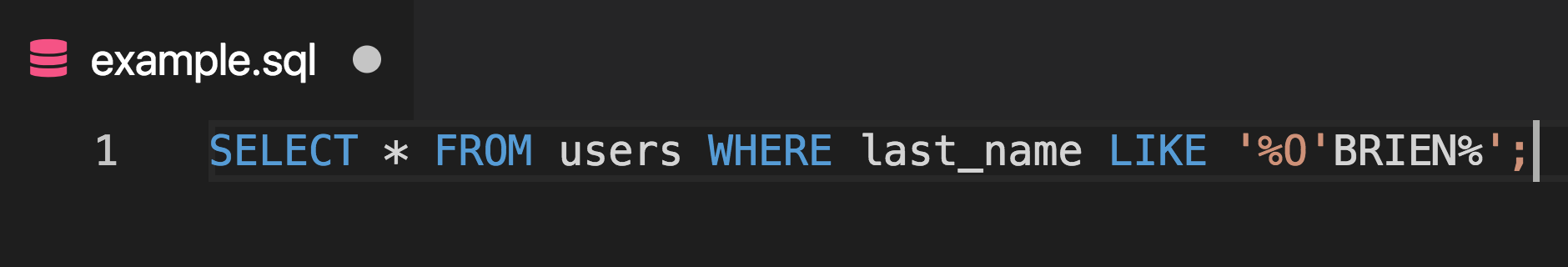

For example imagine someone’s name is O’Brien. The single quote in O’Brienhappens to also be part of SQL command syntax. For example a website may perform a database record search like this:


Notice that the single quote in the name O’Brien is causing a syntax error. The SQL command processor considers the string ends with O and the rest, BRIEN%, is just an unrecognized command.

In order to work around this problem one must escape the single quote with a another single quote like in the image below.


However when this query is executed by a program, things look different. The name would be read from a variable and the database query would be constructed dynamically.

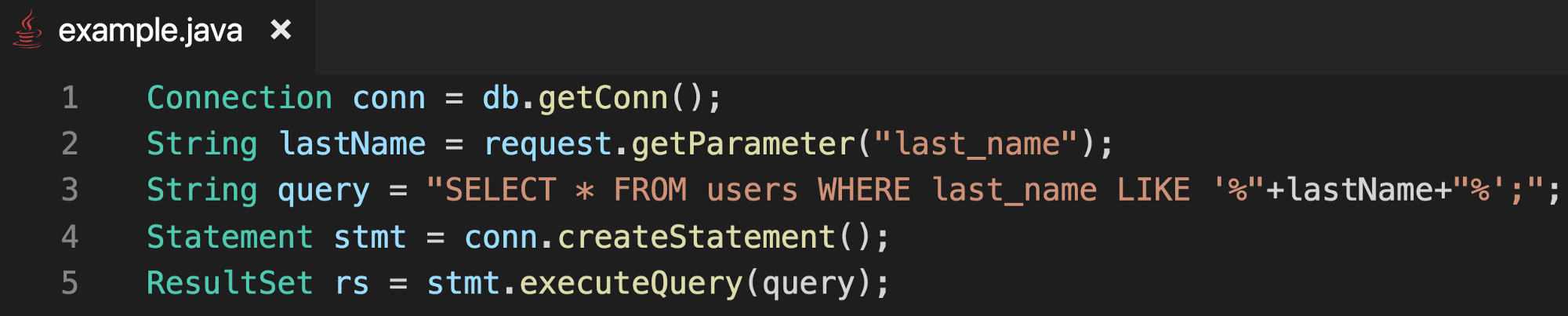

Let’s take a look at the following code snippet.


The variable lastName contains input coming from the user. It is concatenated to a constant SQL query string and the resulting command is passed to the database server.

There is no input validation and no input escaping whatsoever. This means that a user entering O’Brien would cause an SQL syntax error, which is a bug. However a malicious user would take advantage of this behaviour. What would happen if the user entered something like the string below?


The SQL query being passed to the database would end up being two different commands. One selects all users in the database, while the other deletes the users table.


If these concepts are new to you, now you can finally enjoy this old hacker joke about little Bobby Tables.


Preventing Injection

As the old comic suggests, sanitizing the user input could have prevented the issue. “Sanitizing” could have been done with Input Validation or escaping of the single quote. However not all input can be validated and not all SQL Injection is done with single quotes.

In the example below Injection takes advantage of an un-sanitized ORDER BY parameter:


In this case Input Validation could be employed because column names should be alphanumeric however this leads to a more complex defence strategy where the application must employ Input Validation for values going into the ORDER BY section and Escaping for values going into the WHEREclause.

There is however a simpler way. Do not use concatenation at all. This approach also holds true for other Injection scenarios like Command Injection.


This is a scenario where we can employ Occam’s Razor to identify the simplest most universal defence to Injection attacks. The solution here is using Parameterized Statements.

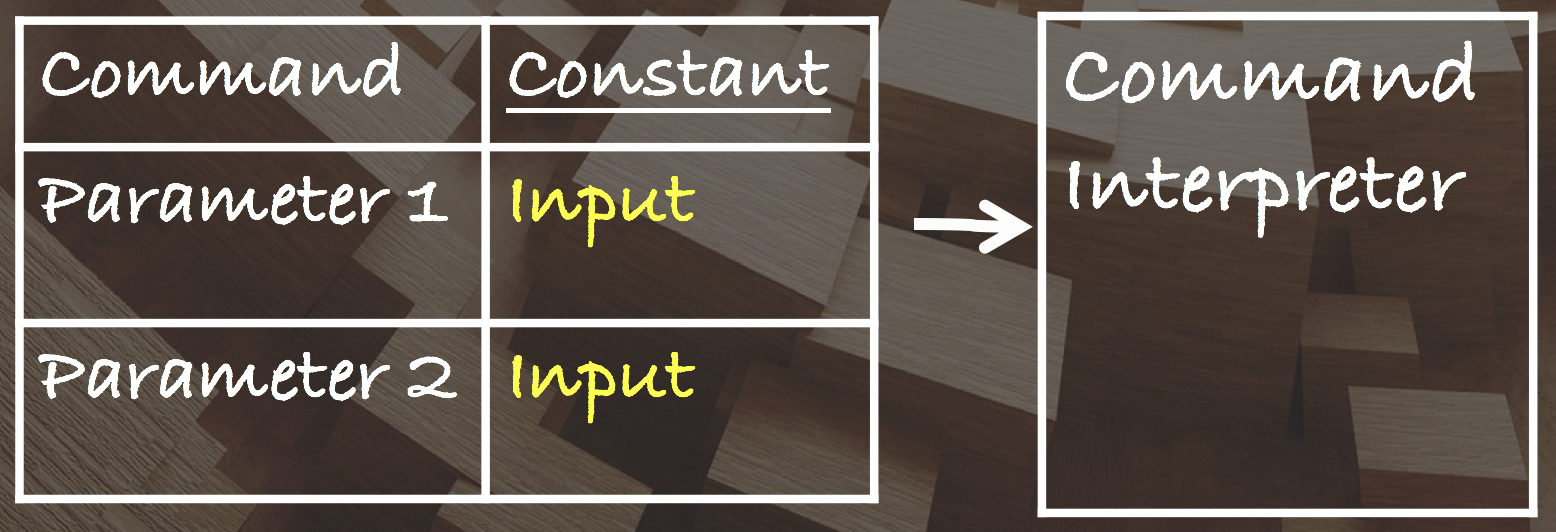

Parameterized Statements interact with the command processor to separate the variables from the SQL query, thus effectively neutralizing characters that may influence the query.

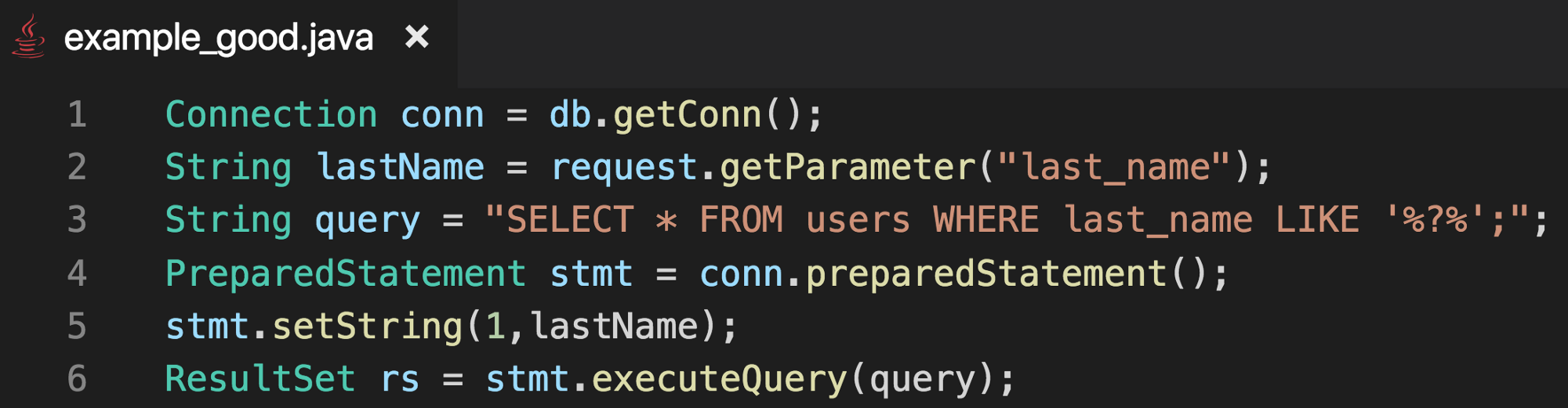

In Java this can be achieved by using a Prepared Statement as per the example belowThe question mark in the query string at line 3 is a placeholder for the parameter value.


When dealing with OS Commands, is best to avoid them completely and write the equivalent functionality in your programming language of choice. For example if you must read a file in Java use APIs such as File and BufferedReader rather than the Linux cat command. However in certain cases there’s no choice and the code must “Shell Out”. For those situations the equivalent of a Prepared Statement is passing command line arguments as a separate array, thus avoiding concatenation.


Object-Relational Mapping (ORM)

There’s an even better way to abstract SQL statements from application code. ORM frameworks allow developers to work with objects rather than SQL queries. Instead of working with the users table developers would work with a users collection and execute a method on that collection to return the corresponding record.

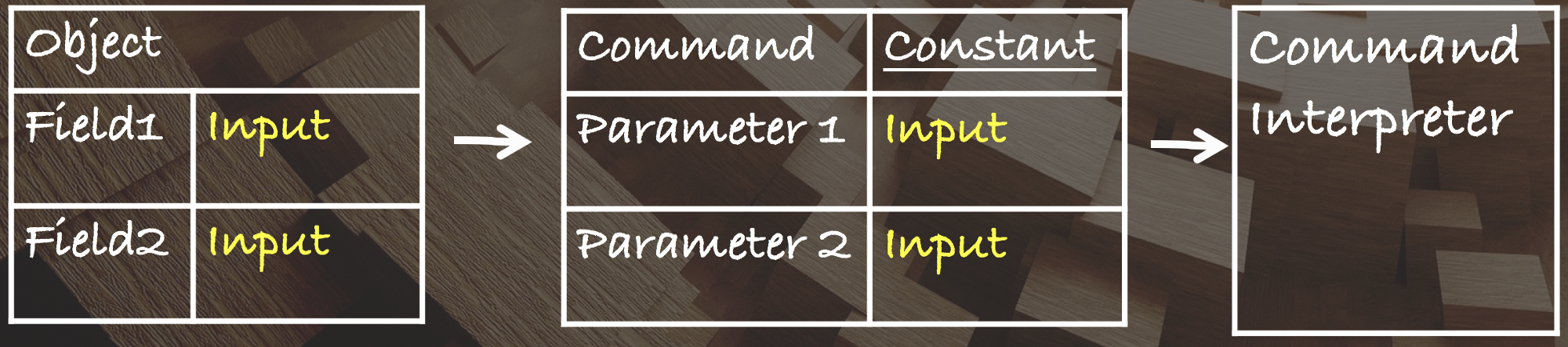

Under the covers the framework would perform a transformation similar to the diagram below.


Caution

There are cases where Injection will still occur in spite of Parameterized Statements being used. For example when the injection occurs in a database stored procedure or the OS shell script being executed

In order to reduce the likelihood of such scenarios occurring, Input Validation should still be used as much as possible.

To sum it all up

When reviewing a code change that involves a command processor look for the following:

  • Input Validation for known alphanumeric values

  • Employing Parameterized Statements

  • Using a ORM framework where applicable
